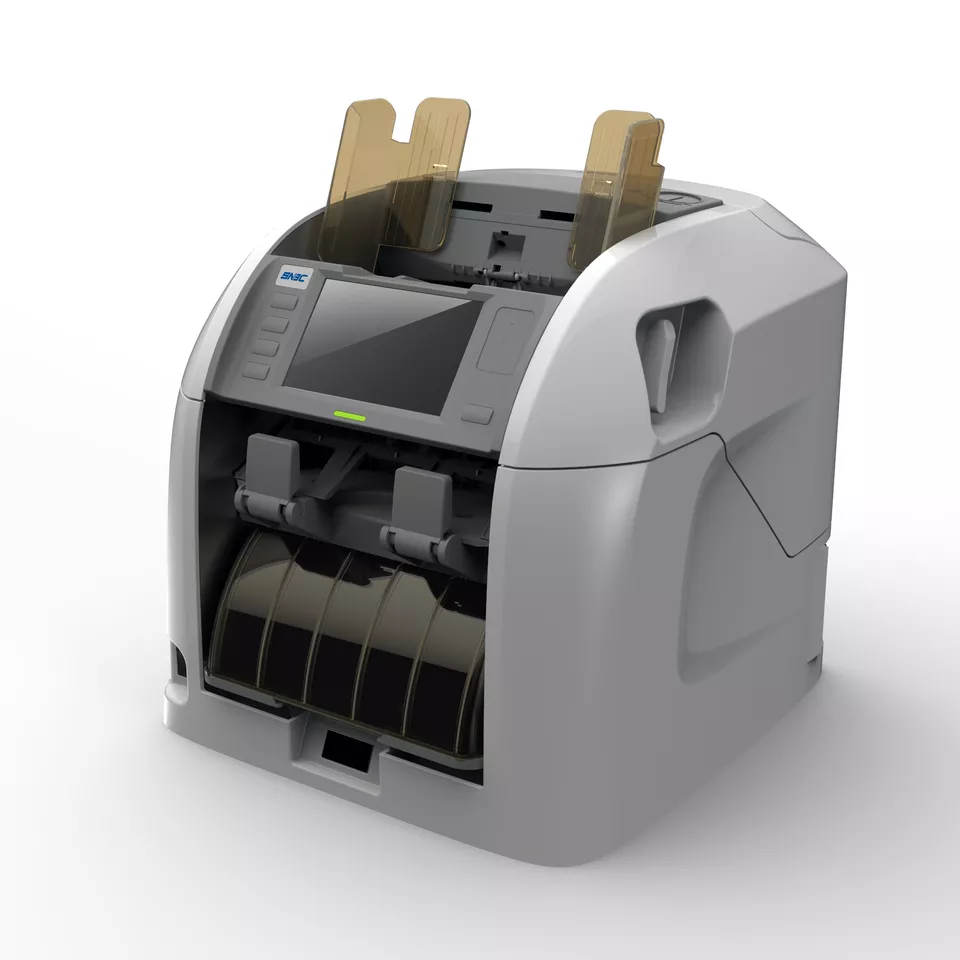

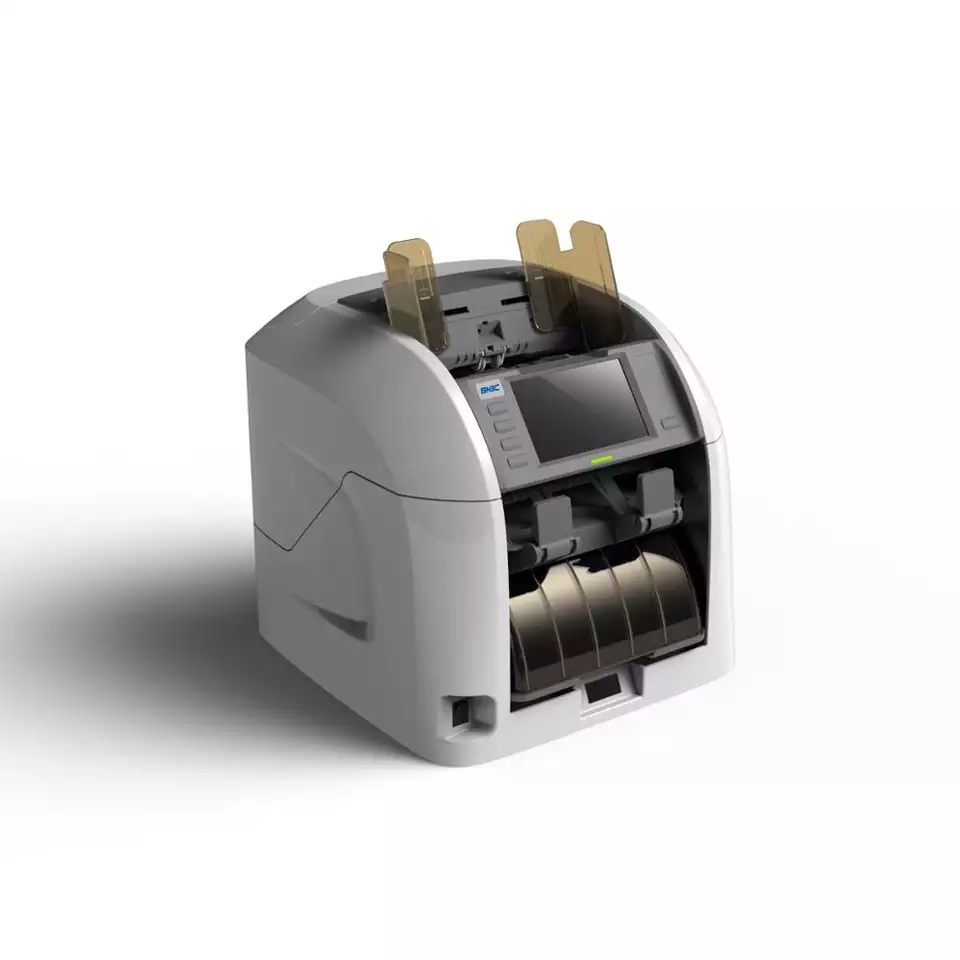

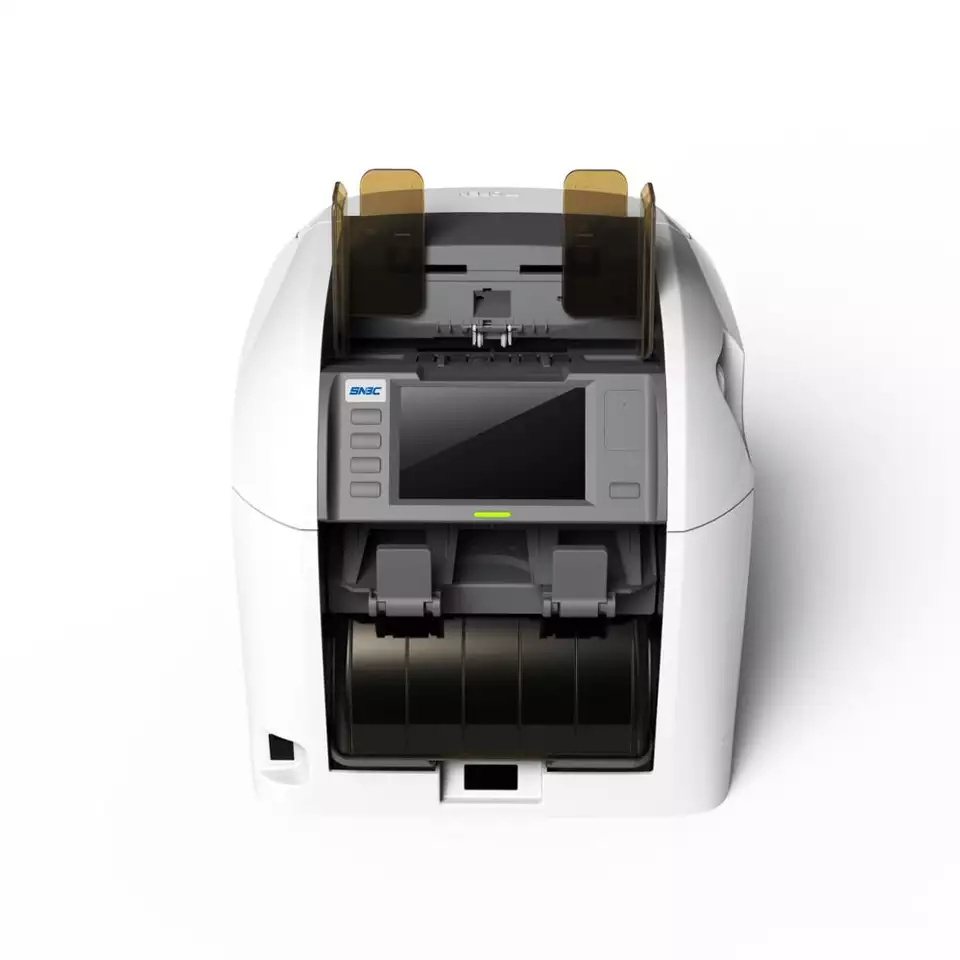

BCP S110 Bank Note Sorter


  • Full fitness sorting: detection of adhesive tape, soil, stain, graffiti, fold, tear, wrinkle, missing corner, hole, dog ears, ink wear, multiple overlapping of notes, thickness etc.
  • 5” full color, touch screen (LED)
  • Various operation modes:
    Mixed/single/face/orient/count/fitness (ATM/Fit)/denomination
  • Enhanced counterfeit detection: Magnetic sensor/ UV sensor/IR sensor
  • Multi Currencies capability: up to 23 different
  • Easy upgrade: using USB memory stick or over
  • Multiple fitness modes: ATM/Fit/Customized sorting
  • User friendly Interface: easy menu settings
  • Serial number reading: Possibility to upload serial data, serial numbers are captured in Nepali font.
  • Standard Double CIS.
  • Easy Jam removal and separate dust collection.
  • Up to 45,00,000 notes serial numbers are stored in internal storage of machine.

Item Specification

  • Dimension 315 (W) x 340 (L) x320 (H) mm
  • Weight Approx. 15,6 kg
  • Hopper capacity 600 notes
  • Stacker capacity max. 200 notes
  • Reject pocket max. 100 notes
  • Counting speed up to 1200 npm
  • Fitness speed up to 720 npm
  • Interface 2 USB, RS-232c Port
  • Power Requirements 100-240 V, 50-60 Hz
  • Noise < 70 db (working)
  • Startup time less than 30 seconds
